Motorized Rotary Table & Manual Angle Table
Electric Rotary Table 100
This Motorised Rotary Table, driven by worm and worm gear, offers 360° movement and ±0.01° repeatability positioning accuracy, ideal for precision positioning scenarios.
Rotary Table Surface Size | φ100mm |
Movement | 360° |
Drive Type | Worm and Worm Gear |
Reduction Ratio | 180 |
Bearing Type | Crossed roller bearings |
Main Material and Material Treatment | 6061T6 aluminium alloy sandblasted black oxide |
Radial Run - out | 0.01mm |
Axial Run - out | 0.01mm |
Horizontal Center Load | 40KG |
Repeatability Positioning Accuracy | ±0.01° |
Motor Flange Interface | 42 stepper motor/40 servo motor (requires replacement of motor flange) |
Self - weight | 1.7KG |
- 360° arbitrary angle positioning,compact structure,low noise,repeated positioning accuracy of 0.01°，fast response speed and strong stability.
What’s Next?
CAD & 3D Drawings
Download Now
Installation & Maintenance
Read Now
Application Examples
Read Now
Other Models Available
Wennan Product
Dual Lead Worm Gears
-
Dual Lead Worm Gears
The reverse backlash is extremely small, and when the side clearance increases,the axial position of the worm can be adjusted to restore the original accuracy. The precision worm gear and worm can achieve the highest accuracy of German standard DIN level 2.Applicable to: Four five axis CNC turntable.
-
Double Stage Worm Gear
Zero back clearance high-precision double segment worm gear, multi tooth meshing, large load-bearing and high torque, worm gear machining accuracy can reach DIN2 level with adjustable side clearance. The worm gear is driven by a solid shaft, and the hollow shaft absorbs the reverse impact force of the worm gear, ensuring smooth transmission of the machine tool.Applicable to: machine tool five axis turntable, five axis grinder swing head and other devices.
-
ZC Worm Gear
With high load-bearing capacity, high torque, high efficiency in multiple heads, and a special tooth profile design, the concave surface of the worm gear matches the convex surface of the worm gear, ensuring better tooth surface meshing and extremely low tooth surface pressure.Applicable to: Elevator industry,industrial equipment.

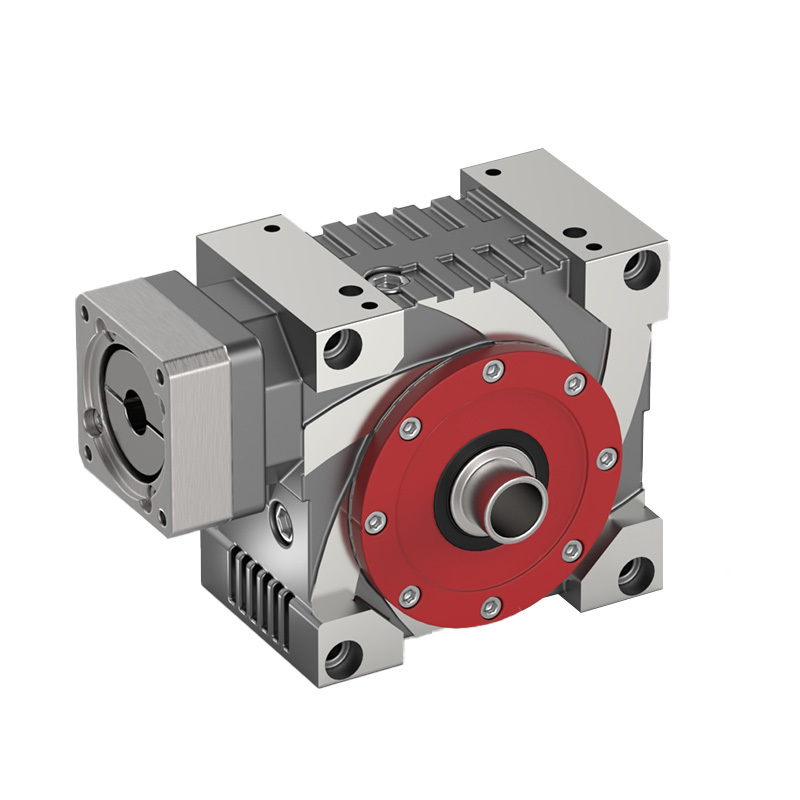

Dual Lead Worm Gearbox
